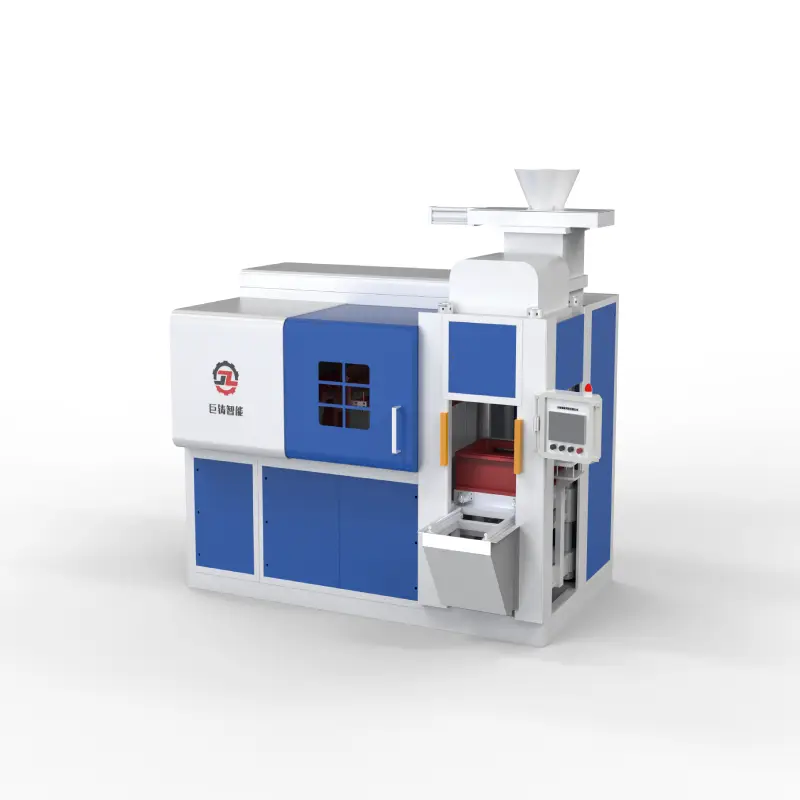

Fully Automatic Horizontal Parting Flaskless Molding Machine(with separate core-setting station)

Fully Automatic Horizontal Parting Flaskless Molding Machine(with separate core-setting station)

    Technical features:

    1.Outside the machine under the core, safer, more convenient
Detail

type

JZ5565S

JZ6575S

Size of sandbox（mm）（length✖width）

550✖650

650✖750

Sand box heightComtrol adjustment

(Upper)150-200 (Lower)150-200

(Upper)150-200(Lower)150-200

Moulding mode

Air shot sand+extrusion

Air shot sand+extrusion

Moldding takt

45sec/mold (not including downcore hours)

45sec/mold (not including downcore hours)

Drive method

Air&pneumate&hydraulic device

Air&pneumate&hydraulic device

Input vottage

AC220~380V

AC220~380V

Motor power

22KW

30KW

Control mode

Touch screen/PLC

Touch screen/PLC

Pneumatic working pressure

0.55~0.75

0.55~0.75

Mould type

Aluminium doubule panel

Aluminium doubule panel

Thickness of template

20-25mm

25-30mm

Pouring and riser’diameter

Φ25、 Φ30、 Φ35

Φ25、 Φ30、 Φ35

Humidity of sand mold

3.0-3.7%

3.0-3.7%

Hydraulic oil

46hydraulic oil

46hydraulic oil
