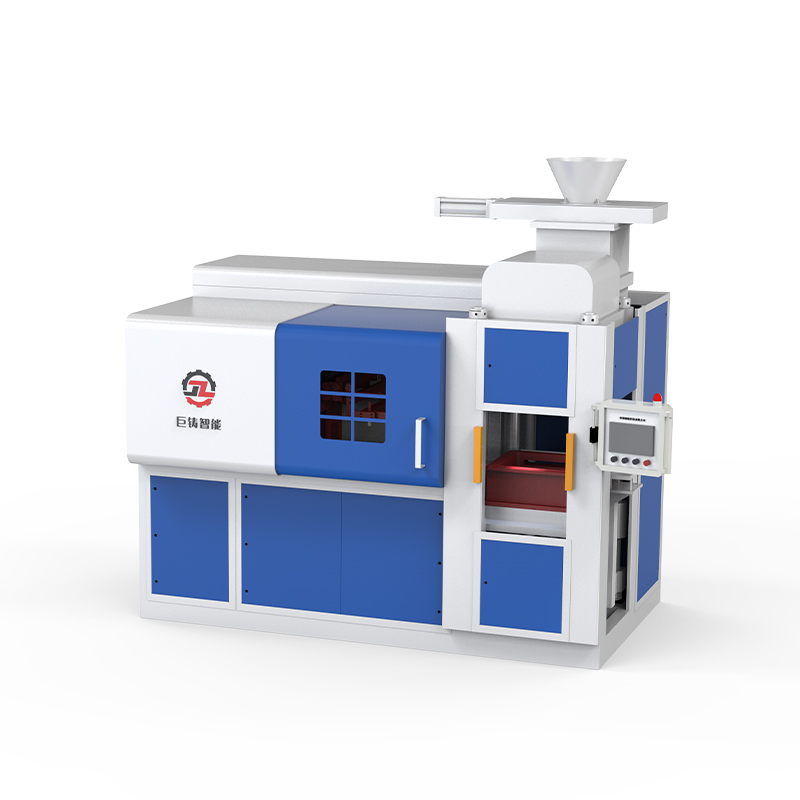

Fully Automatic Lateral Sand Shooting Flaskless Molding Machine

Fully Automatic Lateral Sand Shooting Flaskless Molding Machine

    Technical features:

    1.Improve production efficiency and save human resources

    2.Efficient and stable, 24H continuous operation

    3.Adjustable Sandbox Height with Sand Conservation

    4.Configure safety grating to ensure safe use

    5.Built-in thousand groups of memory function, no need to adjust the machine when replacing the mold

    6.Low equipment failure rate, self-diagnosis

    7.Simple operation, no need for professional technicians

    8.Servo hydraulic closed-loop control, low energy consumption


Detail
Type JZ3545 JZ4555 JZ5565 JZ6575
Flask Dimensions
(L✖W)		 350✖450 450✖550 550✖650 650✖750
CNC-Controlled Flask Height Adjustment (Upper)120-200
(Lower)120-200		 (Upper)120-200
(Lower)120-200		 (Upper)120-200
(Lower)120-200		 (Upper)120-200
(Lower)120-200
Moulding mode Shooting Squeezing Molding Shooting Squeezing Molding Shooting Squeezing Molding Shooting Squeezing Molding
Moldding rate 30sec/mold 30sec/mold 30sec/mold 35sec/mold
Drive method Air&pneumate&hydraulic device Air&pneumate&hydraulic device Air&pneumate&hydraulic device Air&pneumate&hydraulic device
Input voltage AC220~380V AC220~380V AC220~380V AC220~380V
Motor power 18.5KW 18.5KW 22KW 30KW
Control mode Touch screen/PLC Touch screen/PLC Touch screen/PLC Touch screen/PLC
Pneumatic working pressure 0.55~0.75 0.55~0.75 0.55~0.75 0.55~0.75
Mould type Aluminum Double-Sided Match Plate Aluminum Double-Sided Match Plate Aluminum Double-Sided Match Plate Aluminum Double-Sided Match Plate
Thickness 20-25mm 20-25mm 20-25mm 25-30mm
Sprue Diameter Φ20、Φ25、Φ30、Φ35 Φ20、Φ25、Φ30、Φ35 Φ20、Φ25、Φ30、Φ35 Φ20、Φ25、Φ30、Φ35
Humidity of sand mold 3.0-3.7% 3.0-3.7% 3.0-3.7% 3.0-3.7%
Hydraulic oil 46hydraulic oil 46hydraulic oil 46hydraulic oil 46hydraulic oil
